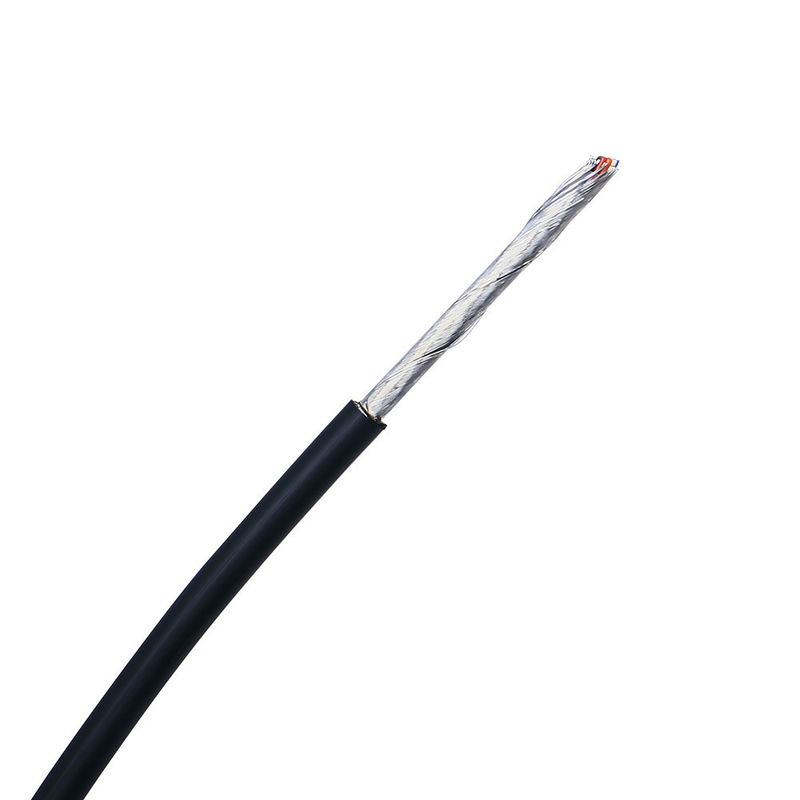

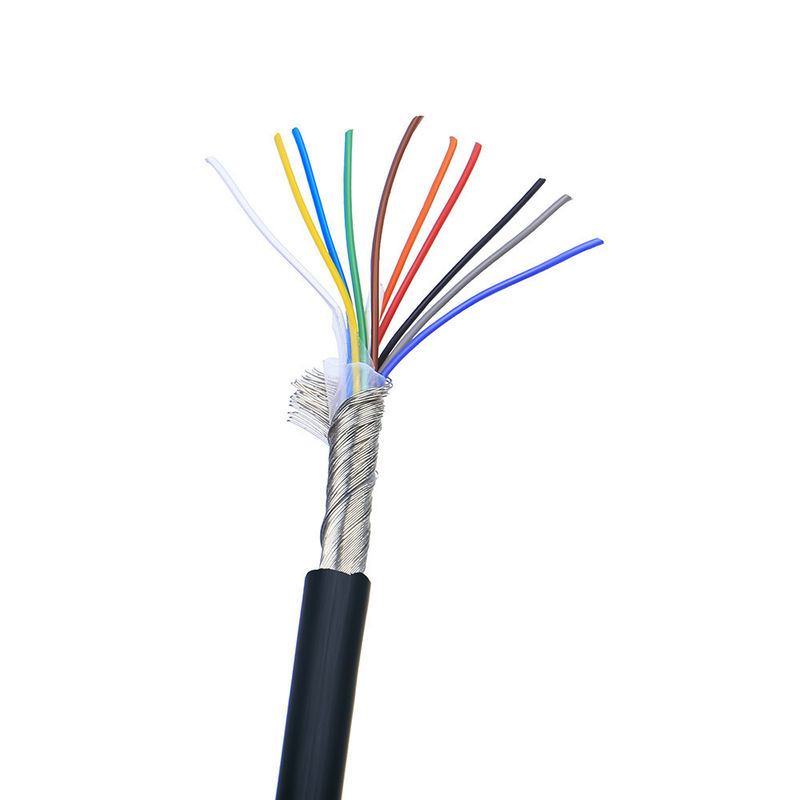

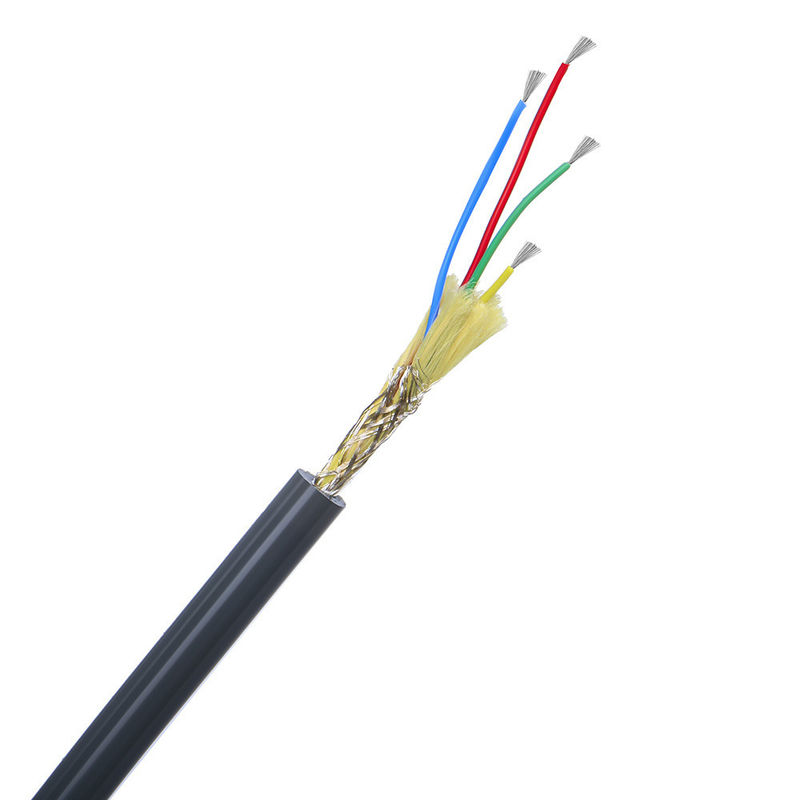

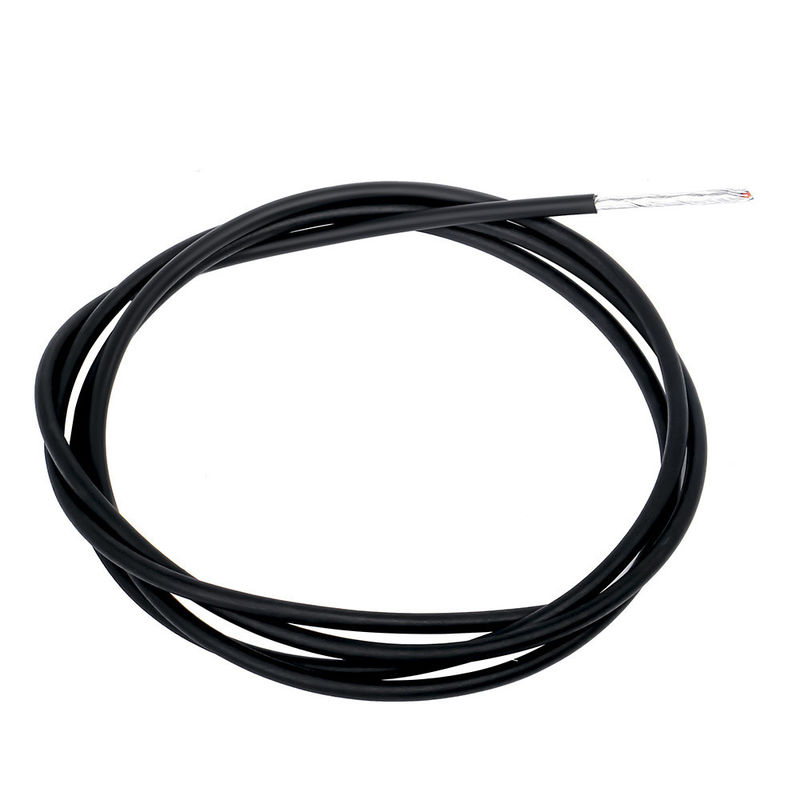

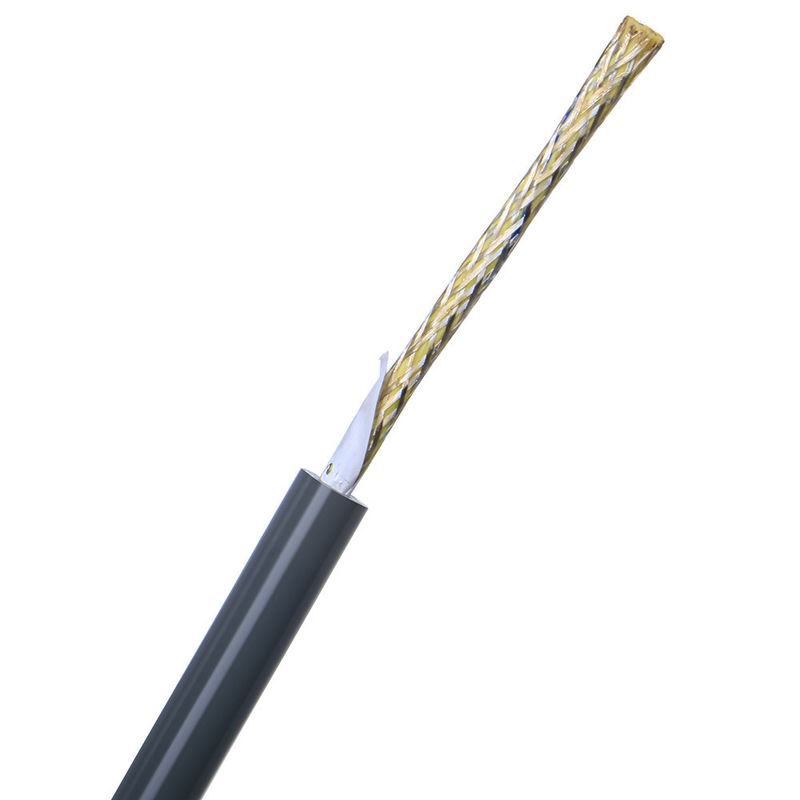

Unshielded Twisted Pair Shielded ADP Cat UTP/FTP/SFTP LAN Cable with PVC Insulation

Sertifikasi:

ISO9001, CE, CCC, RoHS, VDE, Is013458

Hubungi Kami

Minta Kutipan

Unshielded Twisted Pair Shielded ADP Cat UTP/FTP/SFTP LAN Cable with PVC Insulation

Rincian produk

Model NO.:

Kabel ADP cat5e cat6a cat7 cat8 lan

Bahan Sarung:

PE PVC LSZH HDPE

Bahan isolasi:

PVC

Bentuk Bahan:

kawat bulat

Rentang Aplikasi:

kabel LAN

Konektor:

RJ45 8P8C Berlapis emas

Tameng:

Al Foil + Jalinan/Pasangan Terpilin Tanpa Pelindung

Warna:

Disesuaikan

nama:

kabel LAN

Paket Pengangkutan:

GULUNGAN

Spesifikasi:

Kabel LAN ADP cat5e cat6 cat6a cat7 cat8 4P UTP/FT

Merek dagang:

TPS

Asal usul:

Cina

Kode Hs:

8544492900

Menyediakan kemampuan:

500000meter/Hari

Ukuran Paket:

40.00cm * 40.00cm * 40.00cm

Paket berat kotor:

28.000kg

Jenis:

terisolasi

Tipe Konduktor:

terdampar

Bahan Konduktor:

Tembaga Murni, CCA, CCS, Hcca, Ccag

Sampel:

US$ 10/Potong 1 Buah(Pesanan Minimal) |

Pengaturan khusus:

Tersedia Permintaan Disesuaikan

Biaya pengiriman:

tentang biaya pengiriman dan perkiraan waktu pengiriman.

Pembayaran Awal Pembayaran Penuh

mata uang:

DOLLAR AMERIKA$

Pengembalian & pengembalian dana:

Anda dapat mengajukan pengembalian dana hingga 30 hari setelah produk diterima.

Syarat Pembayaran & Pengiriman

Produk terkait

High Voltage 1000V Tinned Copper Electric Coil Wire Cable for Flexible Applications

Dapatkan Harga Terbaik

Initial Payment Copper Underwater Coaxial Cable Data and Video Transmission Cable

Dapatkan Harga Terbaik

US Currency Flexible Cable for Engineering Plant Installations and Vehicle Manufacturing

Dapatkan Harga Terbaik

XLPE Insulated High Voltage Shielded Power Cable for Energy Smart Vehicles Competitive

Dapatkan Harga Terbaik

Hubungi Kami

86-0769-81776230

86-18665106395

sales@linkecable.com

Hubungi Sekarang

Deskripsi Produk

ADP cat5e cat6 cat6a cat7 cat8 lan cable 4P UTP/FTP/SFTP lan cable

item	lan cable
Place of Origin	China
	Guangdong
Brand Name	SMT,OEM
Number of Conductors	8
Product name	cat5e cat6 cat6a cat7 cat8 Lan Cable
Shield	Al Foil+braiding/Unshielded Twisted Pair
Conductor	Bare Copper,CCA,CCS,HCCA,CCAG
Number of Conductor	8
Jacket Material	PE PVC LSZH HDPE
Connector	RJ45 8P8C Gold-plated
Keyword	Network Lan Cables
Color	Customized
Payment	T/T

Product Description

Typical Cable Specifications For CAT5E UTP/FTP

Frequency (MHZ)	Return loss(dB)	Attenuation (dB/100m)	NEXT (dB)	ACR (dB)	PSNEXT (dB)	ELEFXT (dB/100m)	PSELEXT (dB/100m)	Delay (ns/100m)
0.772	19.4	1.8	67	65	64	66	63	575.0
1.0	20.0	2.0	65.3	63.0	62.3	63.8	60.8	570.0
4.0	21.0	4.1	56.3	52.0	53.3	51.7	48.7	552.0
8.0	24.5	5.8	51.8	46.0	48.8	45.7	42.7	546.7
10.0	25.0	6.5	50.3	44.0	47.3	43.8	40.8	546.4
16.0	25.0	8.2	47.3	39.0	44.3	39.7	36.7	543.0
20.0	25.0	9.3	45.8	37.0	42.8	37.7	34.7	542.0
25.0	24.3	10.4	44.3	34.0	41.3	35.8	32.8	541.2
31.25	23.6	11.7	42.9	31.0	39.9	33.9	30.9	540.4
62.5	21.5	17	38.4	21.0	35.4	27.8	24.8	438.6
100.0	20.1	22	36.3	13.0	32.3	23.8	20.8	537.6

Typical Cable Specifications For CAT6 UTP/FTP

Frequency (MHZ)	Return loss(dB)	Attenuation (dB/100m)	NEXT (dB)	ACR (dB)	PSNEXT (dB)	ELEFXT (dB/100m)	PSELEXT (dB/100m)	Delay (ns/100m)
0.772	19.4	1.8	76.0	74.0	74.0	70.0	67.0	575.0
1.0	20.0	2.0	74.3	72.0	72.3	67.8	64.8	570.0
4.0	23.0	3.8	65.5	61.0	63.3	55.8	52.8	552.0
8.0	24.5	5.3	60.8	55.0	58.8	49.7	46.7	546.7
10.0	25.0	6.0	59.3	53.0	57.3	47.8	44.8	545.4
16.0	25.0	7.6	56.2	49.0	54.2	43.7	40.7	543.0
20.0	25.0	8.5	54.8	46.0	52.8	41.8	38.8	542.0
25.0	24.3	9.5	53.3	44.0	51.3	39.8	36.8	541.2
31.25	23.6	10.7	51.9	41.0	49.9	37.9	34.9	540.4
62.5	21.5	15.4	47.4	32.0	45.4	31.9	28.9	538.6
100.0	20.1	19.8	44.3	24.5	42.3	27.8	24.8	537.6
200.0	18.0	29.0	39.8	10.8	37.8	21.8	18.8	536.5
250.0	17.3	32.8	38.3	5.5	36.3	19.8	16.8	536.3

Typical Cable Specifications For CAT5E SFTP

Frequency(MHZ)	Attenuation(dB/100meter at 20ºC), Max	Next(dB),Min	Power Sum(dB),Min
1MHz	-----	65*	62*
4.0	4.1*	56*	53*
8.0	5.8*	51*	48*
10.0	6.5*	50*	47*
16.0	8.2*	47*	44*
20.0	9.3*	45*	42*
25.0	10.4*	44*	41*
31.25	11.7*	42*	39*
62.5	17.0*	38*	35*
100.0	22.0*	35*	32*
125.0	25.0*	34*	31*

Typical Cable Specifications For CAT6 SFTP

Frequency(MHZ)	Attenuation(dB/100meter at20ºC),Max	Next(dB),Min	Power Sum(dB),Min
0.772	-----	67*	64*
1.0	-----	65*	62*
4.0	6.4*	56*	53*
8.0	8.9*	51*	48*
10.0	9.9*	50*	47*
16.0	12.3*	47*	44*
20.0	13.8*	45*	42*
25.0	16.0*	44*	41*
31.25	17.1*	42*	39*
62.5	25.6*	38*	35*
100.0	100MHz	33*	32*
125.0	37.4*	34*	31*

Typical Cable Specifications For CAT7 SFTP

Frequency(MHZ)	Attenuation(dB/100meter at20ºC),Max	Next(dB),Min	Power Sum(dB),Min
1	2.0*	80.0*	77.0*
4	3.7*	80.0*	77.0*
10	5.9*	80.0*	77.0*
16	7.4*	80.0*	77.0*
20	8.3*	80.0*	77.0*
31.25	10.4*	80.0*	77.0*
62.5	14.9*	75.5*	72.5*
100	19.0*	72.4*	69.4*
155	24.0*	69.5*	66.5*
200	27.5*	67.9*	64.9*
300	34.2*	65.2*	62.2*
600	50.10*	60.7*	57.7*

Company Profile:

we are a leading cable supplier in China, who specialized in measuring & control devices cable, medical equipment cable, automotive & rail transit cable, wind & solar energy cable, alarm & security cable, conveyor and elevators cable, conveyors & cranes cable, communications & coaxial cable's R&D and production.

In the past over 10 years, we've been focusing on technical researching, production and marketing of wire and cable. And provide the best cables and various cable custom solutions for customers from world wide. You always can get a suitable cable or cable custom service for your product or application from Linke Cable.
ADP Cat UTP/FTP/SFTP LAN Cable

Our certification:

We past UL1569,2095,2103,2104,2129,2463,2576,2586,2587,2661,2919,10012,10070,10269,10483,20886 and 21664.
ISO9001 and ISO13485

CNR- Appliance Wiring Material,Extruded PVC Insulated Single,rated 105ºC,1000V,ClassI,GroupA,B,or AB, FT1 and/or FT2.
ADP Cat UTP/FTP/SFTP LAN Cable

FAQ

1. Are you a manufacturer or trading company?
We are a professional manufacturer. We can control your order from the first begining to the last.

Welcome to visit us. We'll pick you up in Shenzhen.

2. How can I get a sample to test your quality?
The samples are free for you. New clients are expected to pay for the courier cost.

3. What's your Minimum Order Quantity?
Normally 100m. However, the cable is very heavy.
You'd better order a suitable quantity to avoid the high freight.
Sea transportation is the best option.

4. Can I get a discount?
It depends on your quantity, We can make a discount and afford the freight. Pls kindly contact us.

5. Does your company accept OEM production?
Yes, could print your company name, we even custom the quality card to promote your company
